পণ্যের বিবরণ:
|
| Material: | DX51 | Thickness: | 0.4-0.5mm |
|---|---|---|---|
| Diameter: | 100mm | Power: | 4+3KW |
| Cutting: | Fly saw | warranty: | 1 Year |
| লক্ষণীয় করা: | round downspout machine,pipe roll forming machine |
||

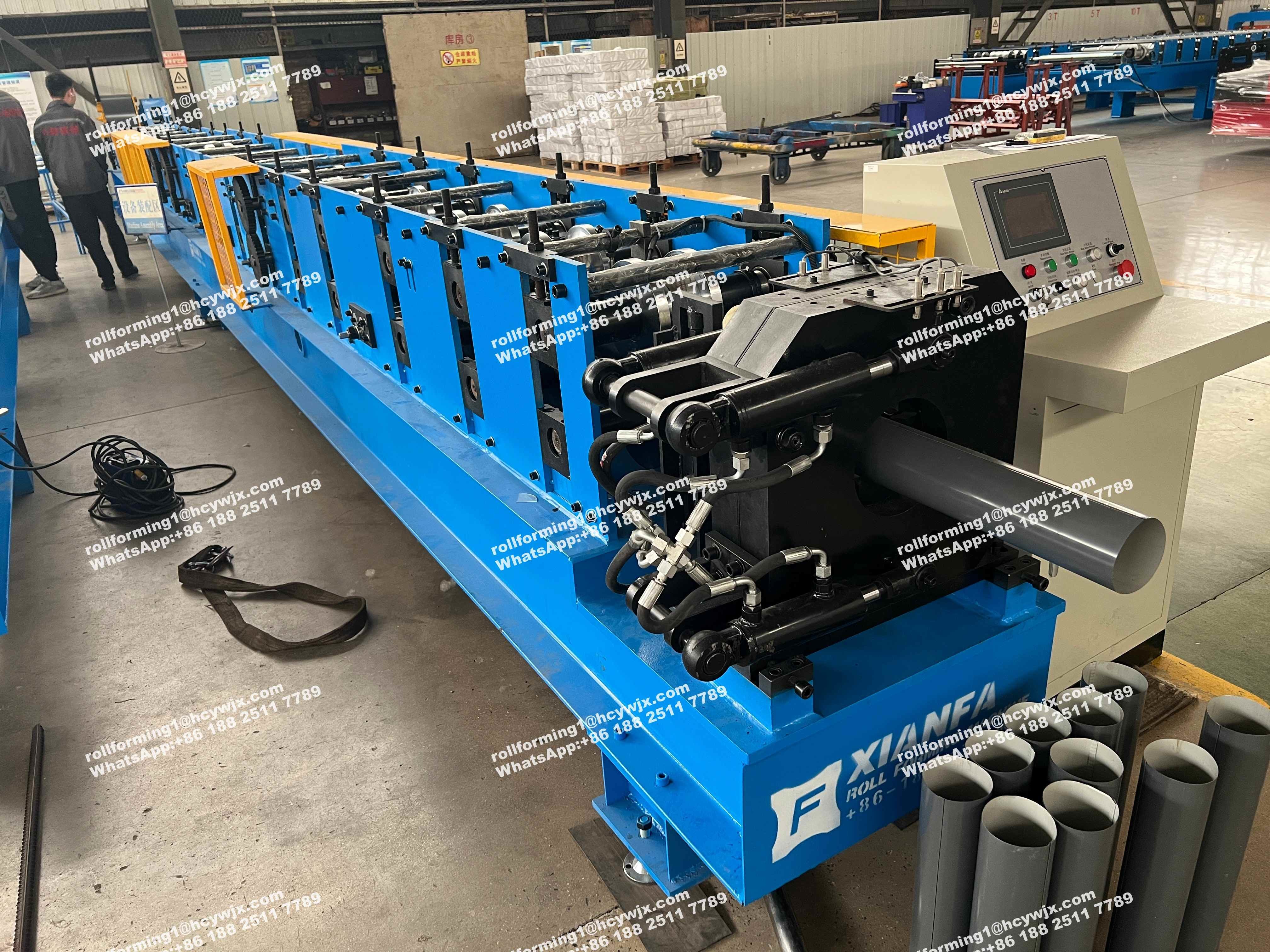

Downspout Pipe Roll Forming Machine/Steel Pipe Making Machine Price
|

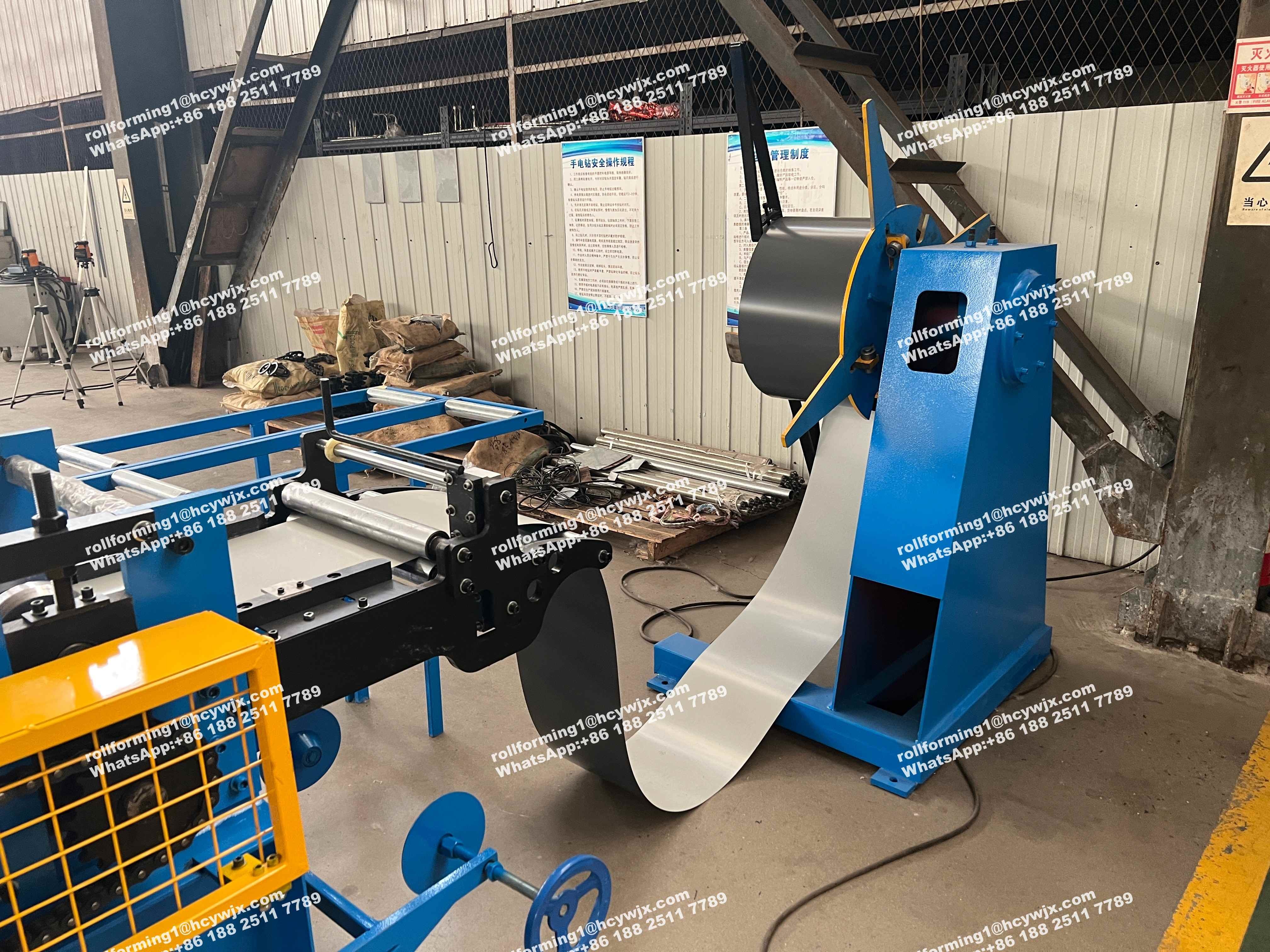

3T hydraulic decoiler
|
1
|
||
|

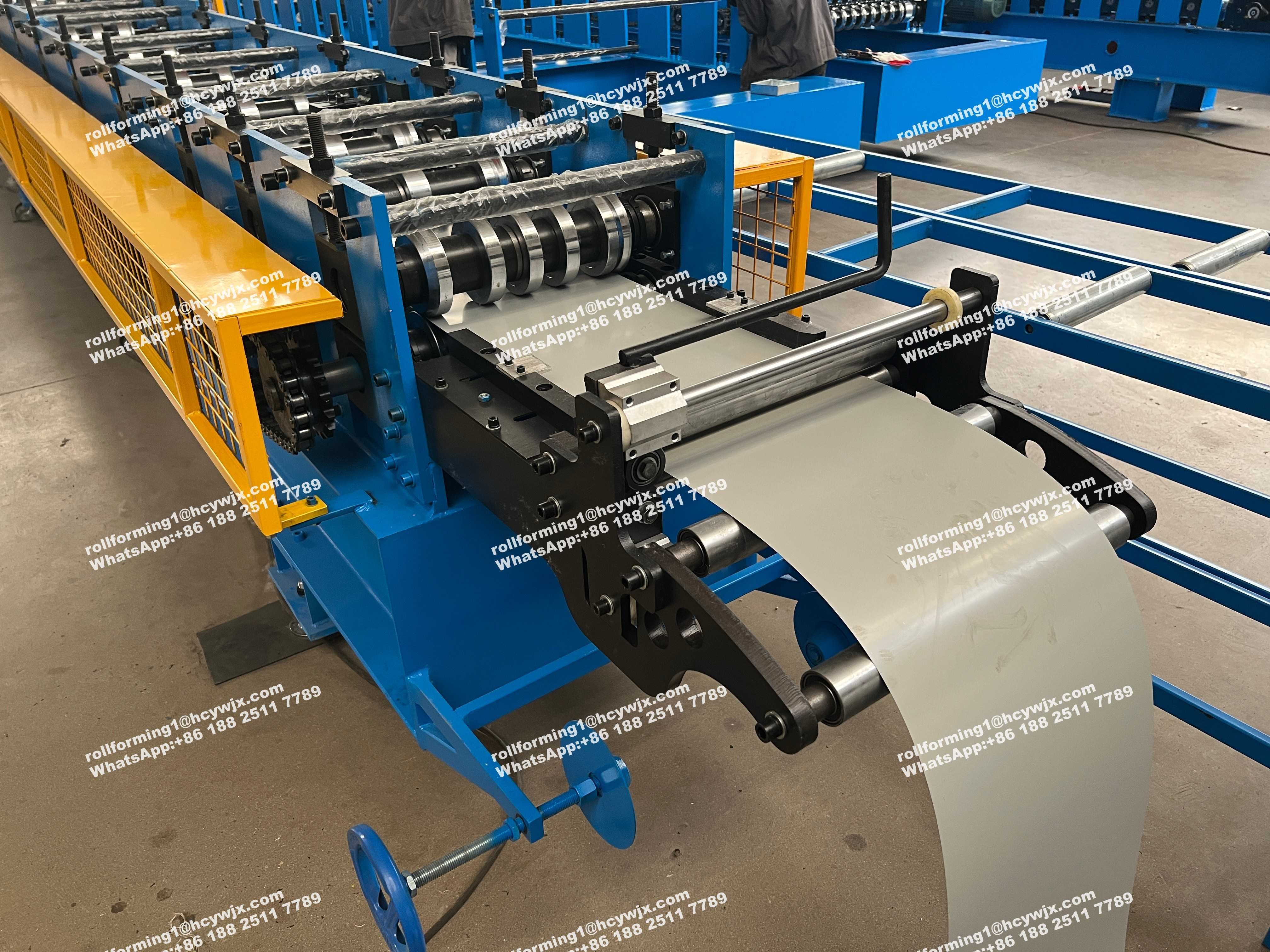

Feeding→pre-cutting→forming station→Post cutting system
|
|||
|
Transmission table
|
1
|
||
|
Hydraulic station
|
1
|
||
|
Control desk
|
1
|
||
|
Elbow machine
|
1
|
||
|
Material of the profile
|
GI or color steel
|
||
|
Thickness range
|
0.4-0.7mm
|
||
|
Coil width
|
444mm
|
||
|
Seaming
|
6mm
|
||
|
Finished product length
|
from 500 mm to (at least) 12’000 mm
|
||
Description:
Downspout Roll Forming Machine Main parameter
|
No. |
Main parameter of Downspout Roll Forming Machine |
|
|
1 |
Suitable to process |
Color steel plate |
|
2 |
Width of the plate |
330mm |
|
3 |
Rollers |
15rows |
|
4 |
Dimensions |
7400*1150*1510mm |
|
5 |
Power |
5.5+4kw |
|
6 |
Rolling material |
high grade 45# steel(plated chrome on surface) |
|
6 |
Thickness of the plate |
0.3-0.6mm |
|
7 |
Productivity |
8-10m/min |
|
8 |
Diameter of the roller |
Φ66mm |
|
9 |
Voltage |
380V 50Hz 3phases |
|
10 |
Material of the cutting plate |
Cr12 |
|
11 |
Hydraulic |
40# |
|
12 |
Processing precision |
Within 1.00mm |
|
13 |
Control system |
PLC control |
Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system-cutting
Application
The roll formed product is mor durable than the tranditional ppc pipe, and not easy to aging.
It will make the project more integrate, and help enhancing the image of all project.
Drainpipe bending machine used for bend the roll formed pipe, to connect the drainpipe and the elbowed pipe.
Competitive Advantage
1. ISO/CE certification
2. 20sets/ month
3. high-speed production
4. easy operate, easy maintain
5.One year free warranty
