পণ্যের বিবরণ:
|
| usage: | shutter door | thickness: | 0.3-0.6mm |
|---|---|---|---|
| warranty: | 1 year | ||
| লক্ষণীয় করা: | steel roll forming machine,door frame roll forming machine |
||

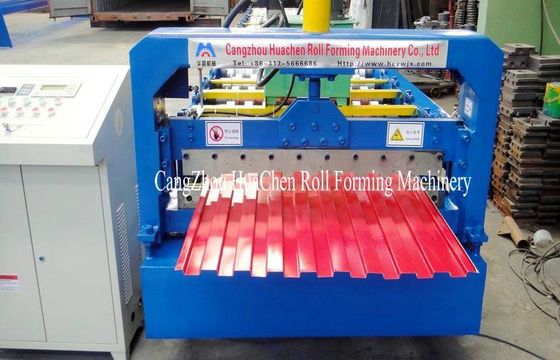

18 Groups Forming Roller Shutter Door Roll Forming Machine For Window / Door Frame
| NO. | Item | Parameter | Remark | |
| 1 | Suitable material | Type | Galvanized steel | - |
| Thickness (mm) | 1.0 | - | ||
| Yield Strength (Mpa) | 450-550 | - | ||
| Width (mm) | 120/145/157 | - | ||
| 2 | Forming Speed (m/min) | About 20-25 | exclude cutting time | |
| 3 | Forming main motor power(KW) | 3*6 | Depend on final design | |
| 4 | Main machine Hydraulic station power(KW) | 5.5 | Depend on final design | |
| 5 | Total power | 23.5 | Depend on final design | |
| 6 | Power | AC415V, 50Hz, 3 Phase | As per customer | |
| 7 | Dimension (L×W×H, m) | 20×3×1.5 | Depend on final design | |
