পণ্যের বিবরণ:
|
| Usage: | roof cladding | Roller material: | 45# steel |
|---|---|---|---|
| Capacity: | 15m/min | Thickness: | 0.3-0.8mm |
| Material: | G550 | ||
| লক্ষণীয় করা: | cold roll forming machine,roof panel roll forming machine |
||

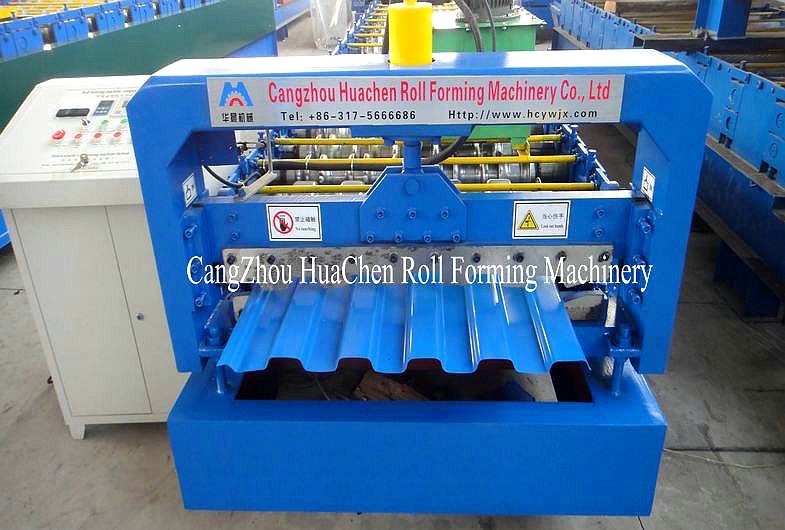

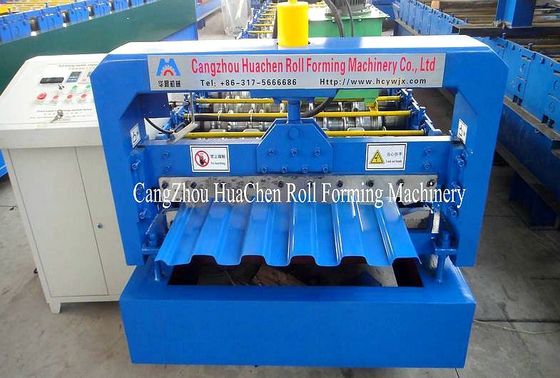

Steel Roof Sheet Roll Forming Machine for Roof Cladding
Quick Detail:
1. Suitable to process: Color steel plate
2. Width of the plate: 1000mm

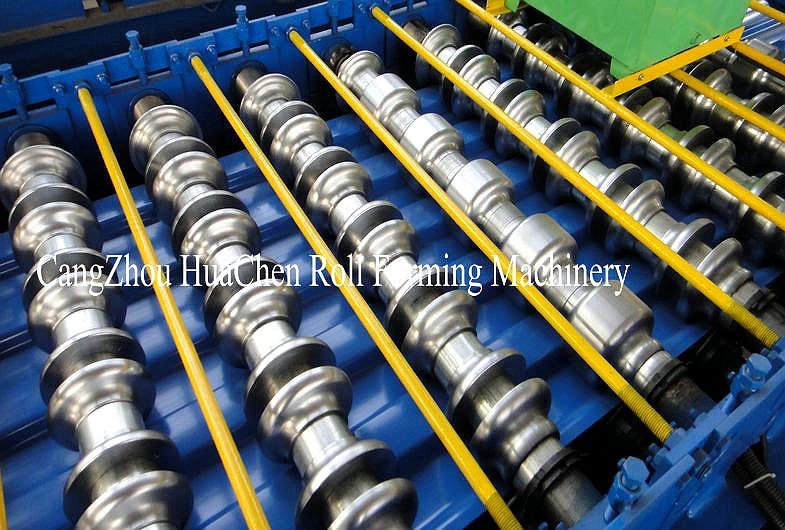

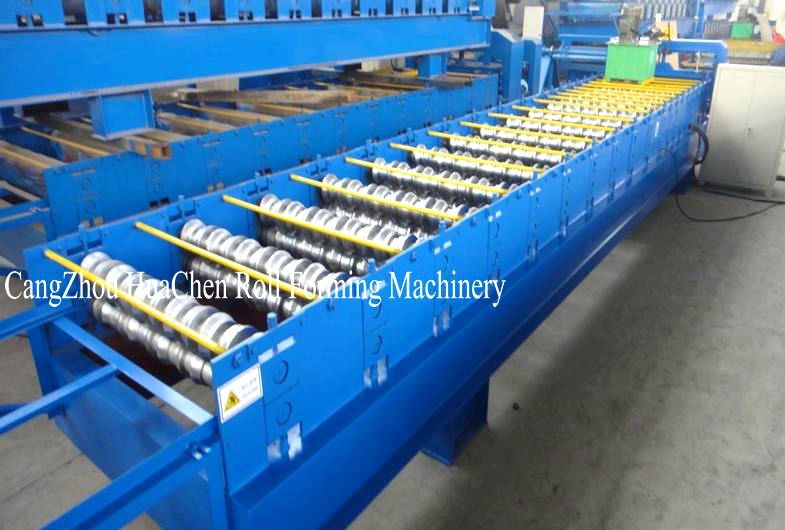

3. Rollers: 19 rows
4. Dimensions: 9.1*1.45*1.51m
5. Power: 3+3kw
6. Rolling material: 45# steel(plated chrome on surface)
7. Thickness of the plate:0.3-0.7mm
8. Voltage: 380V 50Hz 3phases
9. Material of the cutting plate: Cr12
10. Hydraulic: 40#
11. Processing precision: Within 1.00mm
12. Control system: PLC control
Description:
Steel Roof Sheet Roll Forming Machine for Roof Cladding Main parameter
|
No. |
Main parameter of Steel Roof Sheet Roll Forming Machine for Roof Cladding |
|
|
1 |
Suitable to process |
Color steel plate |
|
2 |
Width of the plate |
1000mm |
|
3 |
Rollers |
19 rows |
|
4 |
Dimensions |
9100*1450*1510mm |
|
5 |
Power |
3+3kw |
|
6 |
Rolling material |
45# steel(plated chrome on surface)
|
|
6 |
Thickness of the plate |
0.3-0.6mm |
|
7 |
Productivity |
20m/min |
|
8 |
Diameter of the roller |
Φ70mm |
|
9 |
Voltage |
380V 50Hz 3phases |
|
10 |
Material of the cutting plate |
Cr12 |
|
11 |
Hydraulic |
40# |
|
12 |
Processing precision |
Within 1.00mm |
|
13 |
Control system |
PLC control |

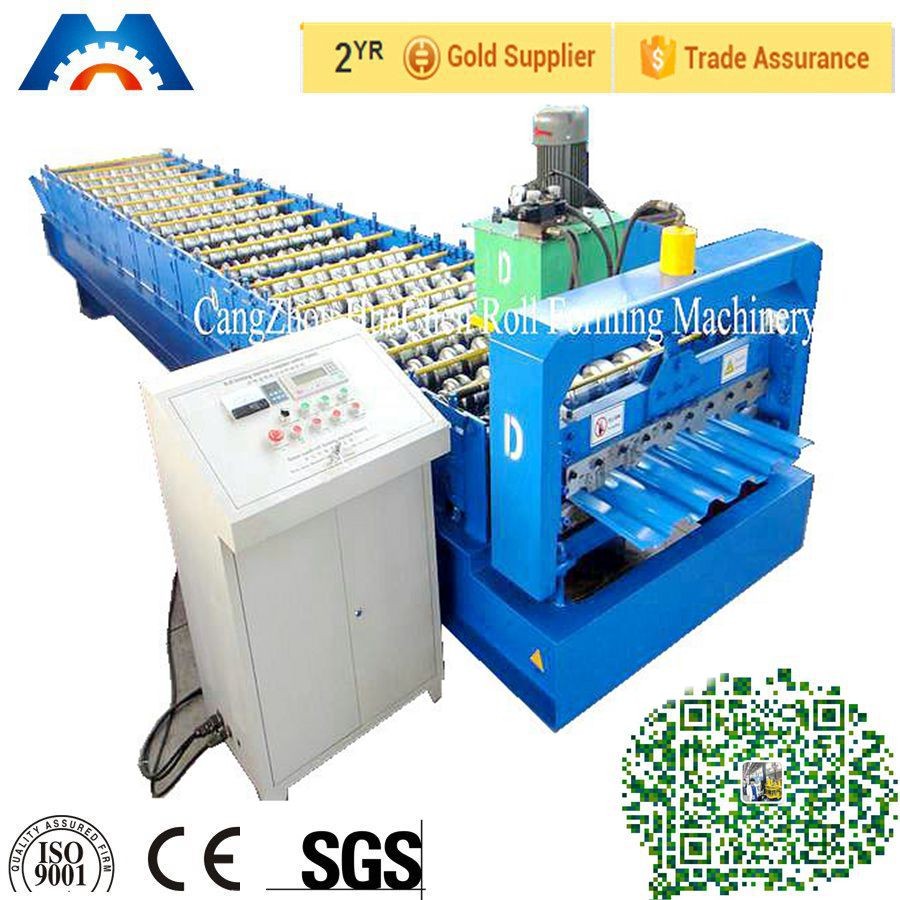

Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system-cutting
Application

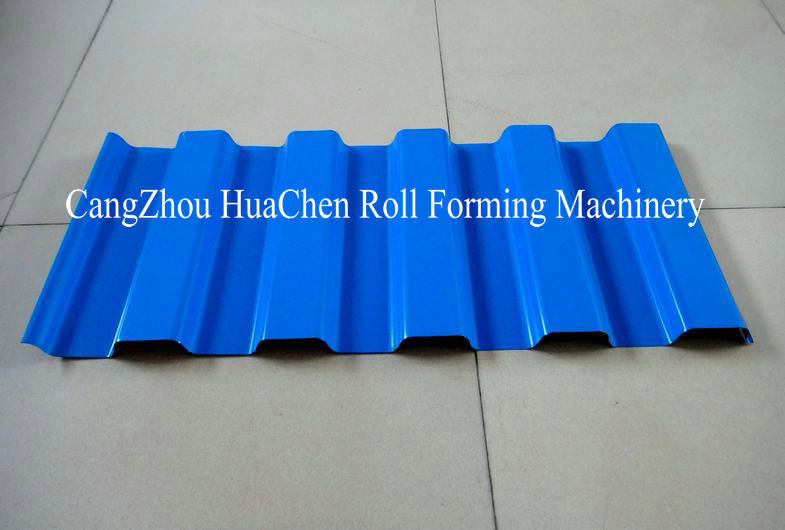

This type of sheet can be widely used in plant, house, storage and simple steel roof and wall. It has advantage of pretty appearance, durable using and so on.
Competitive Advantage
1. CE certification
2 .ISO certification
3. working life 20 years
4. high quality steel
5. High efficiency
