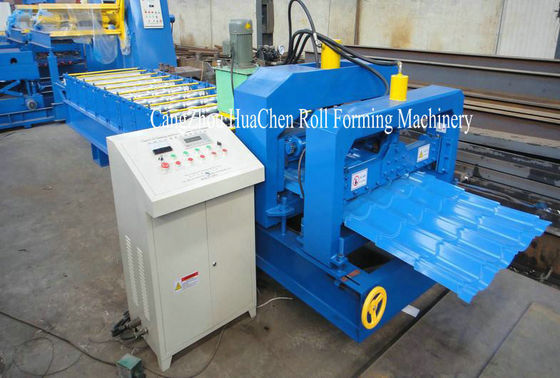

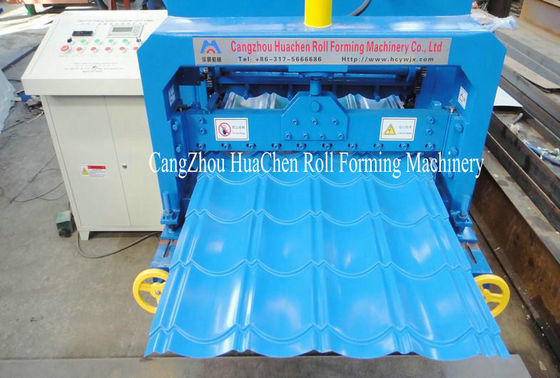

Double Press Glazed Step Tile Roll Forming Machine
1. Working Flow:
3 Phases Hydraulic Arc Sheet Metal Roll Forming Machines Color Steel Roll Form Equipment
Manual Uncoiler- Roll Forming Machine - Computer Control System - Hydraulic Control System - Pressing Form - Cutting
2 Application

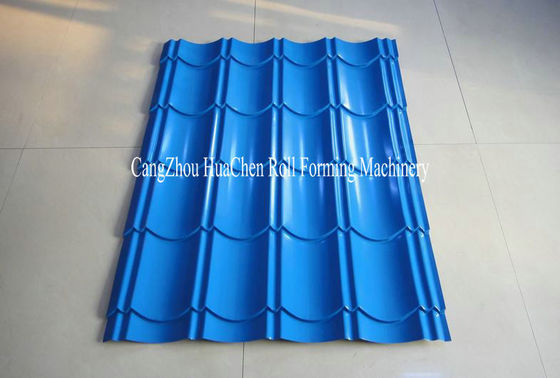

This type of glazed tile has advantage inclouding beautiful, classical appearance and grace taste. It can be widely used in village, hotel, exhibition, vocation vallage, family construction and outdoor decorate.
3 Parameters: 3 Phases Hydraulic Arc Sheet Metal Roll Forming Machines Color Steel Roll Form Equipment
|
No. |
Main parameter of Glazed Tile Roll Forming Machine |
|
|
1 |
Suitable to process |
Color steel plate |
|
2 |
Width of the plate |
1000mm |
|
3 |

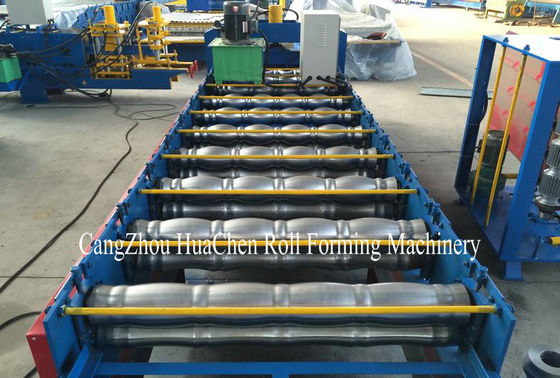

Rollers |
12 rows |
|
4 |
Dimensions |
7100*1450*1510mm |
|
5 |
Power |
4+4kw |
|
6 |
Rolling material |
45# steel(plated chrome on surface) |
|
6 |
Thickness of the plate |
0.3-0.6mm |
|
7 |
Productivity |
0-2m/min |
|
8 |
Diameter of the roller |
Φ70mm |
|
9 |
Voltage |
380V 50Hz 3phases |
|
10 |
Material of the cutting plate |
Cr12 |
|
11 |
Hydraulic |
40# |
|
12 |
Processing precision |
Within 1.00mm |
|
13 |
Control system |
PLC control |
3 Phases Hydraulic Arc Sheet Metal Roll Forming Machines Color Steel Roll Form Equipment
Rolling Material: high grade 45# steel(plated chrome on surface)
Equipment Components: Man-Made Uncoiler-Roll Forming Machine-Computer Control System-Hydraulic Control System-Press Form-Cutting
3 Phases Hydraulic Arc Sheet Metal Roll Forming Machines Color Steel Roll Form Equipment
We have a professional design team
Can also design and manufacture according to customer's requirement.
Competitive Advantage
1.elegant appearance
2.high quality steel structure
3.One year free guarantee
4.lifelong maintain
5.Panasonic PLC
