1100mm Russia Type Glazed Step Tile Roofing Panel Roll Forming Equipment ISO

ক্রেতার পর্যালোচনা
মেশিন ব্যবহার সহজ। বস খুব সুন্দর।

—— ইউরোপ থেকে Mr. Angolon

এটি একটি ভাল প্রস্তুতকারক, একটি ভাল ইংরেজি যোগাযোগকারী, এবং আমি আপনার মেশিন পছন্দ করি। এটা ভাল মানের, এবং সুন্দর!

—— আফ্রিকা থেকে Mr.Mark

চমৎকার সরবরাহকারী! আমি আপনার দ্রুত ডেলিভারি এবং দ্রুত উত্পাদন চক্র পছন্দ, আপনার সাথে যোগাযোগ রাখতে হবে।

—— জ্যাক আমেরিকা থেকে

তোমার দর্শন লগ করা অনলাইন চ্যাট এখন

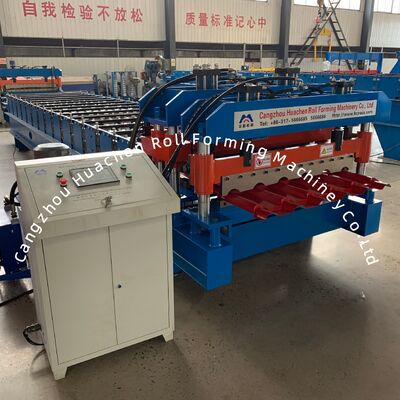

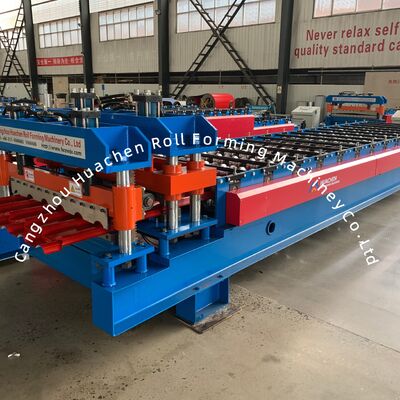

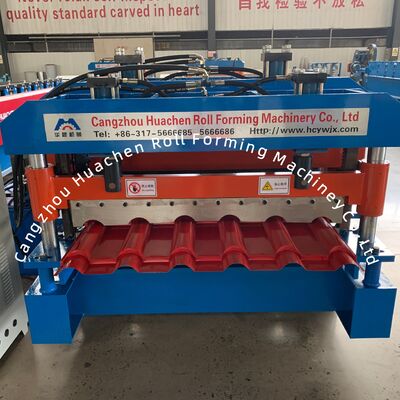

1100mm Russia Type Glazed Step Tile Roofing Panel Roll Forming Equipment ISO

1100mm Russia Type Glazed Step Tile Roofing Panel Roll Forming Equipment ISO
1100mm Russia Type Glazed Step Tile Roofing Panel Roll Forming Equipment ISO

বড় ইমেজ :  1100mm Russia Type Glazed Step Tile Roofing Panel Roll Forming Equipment ISO

পণ্যের বিবরণ:
উৎপত্তি স্থল: Botou Hebei China
পরিচিতিমুলক নাম: HC
সাক্ষ্যদান: ISO
মডেল নম্বার: HC28
প্রদান:
ন্যূনতম চাহিদার পরিমাণ: 1set
প্যাকেজিং বিবরণ: Main machine is nude,the computer control box is packed by carton box
ডেলিভারি সময়: 30days
পরিশোধের শর্ত: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
যোগানের ক্ষমতা: 20 sets/month

1100mm Russia Type Glazed Step Tile Roofing Panel Roll Forming Equipment ISO

বিবরণ
type: 1100mm russia type glazed step tile roofing panel roll forming machine width: 1250
thickness: 0.3-0.6mm capacity: 2-4m/min
Dimension: 7.5*1.5*1.2m life time: 10 years
Weight: 6.5T
লক্ষণীয় করা:

roll forming equipment

,

cold roll forming machine

1100mm russia type glazed step tile roofing panel roll forming machine

1100mm Russia Type Glazed Step Tile Roofing Panel Roll Forming Equipment ISO 01100mm Russia Type Glazed Step Tile Roofing Panel Roll Forming Equipment ISO 11100mm Russia Type Glazed Step Tile Roofing Panel Roll Forming Equipment ISO 2



2.Main parameters

Article No. Item Name Specification
1 Feeding width 1250mm
2 Thickness of Raw material 0.3mm-0.6mm PPGI,GI
3 Roller station 12 stations
4 Shaft Diameter 80mm
5 Productivity 4m/min
6 Rollers' material GR12 steel
7 Shaft material GR12 steel
8 Weight 4.5 tons
9 length 8m
10 Voltage 380V 50Hz 3phases
11 Control system PLC control system
12 Decoiler weight capacity 5 Tons
13 Main Motor 7.5KW
14 Driving way Chain transmission
15 Chain size 1.2inch
16 Cutting system Hydraulic Automatic hydraulic cutter+Front cutter to reduce raw material waste
Our Services



1). Packing method: Nude, with waterproof cloth and stow-wood. The computer controlled cabinet is packed with waterproof cloth and box. The seller should guarantee equipment will be moisture-proof, anti corrosive, and will not be damaged during transportation.

2). Payment Term: 30% of the total contract value paid by T/T as down payment, the rest 70% of the total contract value to be paid by T/T after inspection by buyer in seller’s factory while before delivery. After finished production, we will inspect the machine and inform the buyer, the buyer send person to inspect goods, then payoff the whole payment before shipping out the goods.



3). Delivery Time: The seller guarantees the equipment will be ready for shipment within 30 working days after receipt of deposit from the buyer.



4). Service: We could send the technician to your country to fix the machine if you need. The buyer need to pay for all the cost, including: visa, round trip tickets, accommodation, salary of USD 100~120 per day.



5). Warranty: 12 months

During the warranty, the replaceable parts are free, but the buyers need to pay for the shipping fee. We will also send one set CD and specification(Chinese and English) to you with the machine, they can teach you how to operate the machines.



6). Package: One complete equipment needs a 20 feet container to hold.
