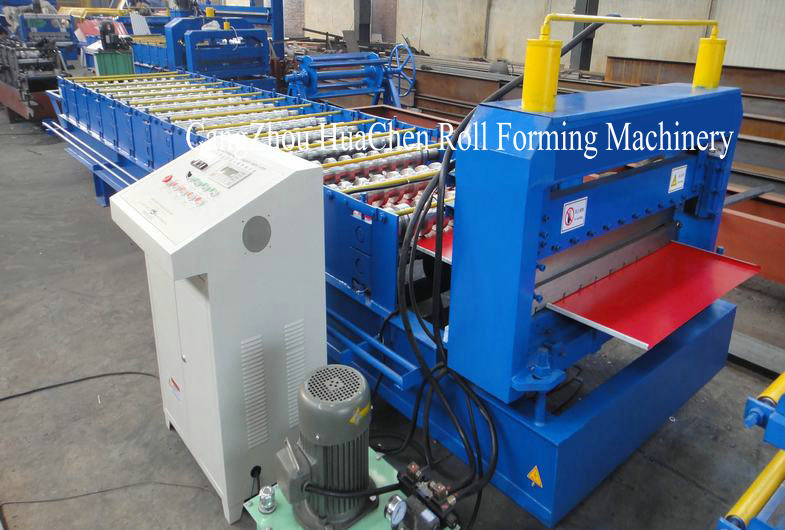

Galvanized Metal Roofing Sheet Roll Forming Machine Automatic Standing Seam

ক্রেতার পর্যালোচনা
মেশিন ব্যবহার সহজ। বস খুব সুন্দর।

—— ইউরোপ থেকে Mr. Angolon

এটি একটি ভাল প্রস্তুতকারক, একটি ভাল ইংরেজি যোগাযোগকারী, এবং আমি আপনার মেশিন পছন্দ করি। এটা ভাল মানের, এবং সুন্দর!

—— আফ্রিকা থেকে Mr.Mark

চমৎকার সরবরাহকারী! আমি আপনার দ্রুত ডেলিভারি এবং দ্রুত উত্পাদন চক্র পছন্দ, আপনার সাথে যোগাযোগ রাখতে হবে।

—— জ্যাক আমেরিকা থেকে

তোমার দর্শন লগ করা অনলাইন চ্যাট এখন

Galvanized Metal Roofing Sheet Roll Forming Machine Automatic Standing Seam

Galvanized Metal Roofing Sheet Roll Forming Machine Automatic Standing Seam
Galvanized Metal Roofing Sheet Roll Forming Machine Automatic Standing Seam
Galvanized Metal Roofing Sheet Roll Forming Machine Automatic Standing Seam Galvanized Metal Roofing Sheet Roll Forming Machine Automatic Standing Seam

বড় ইমেজ :  Galvanized Metal Roofing Sheet Roll Forming Machine Automatic Standing Seam

পণ্যের বিবরণ:
উৎপত্তি স্থল: Botou Hebei China
সাক্ষ্যদান: ISO
মডেল নম্বার: HC100
প্রদান:
ন্যূনতম চাহিদার পরিমাণ: 1set
মূল্য: 9000-29000USD
প্যাকেজিং বিবরণ: Main machine is nude,the computer control box is packed by carton box
ডেলিভারি সময়: 30days
পরিশোধের শর্ত: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
যোগানের ক্ষমতা: 20 sets/month

Galvanized Metal Roofing Sheet Roll Forming Machine Automatic Standing Seam

বিবরণ
পরিচিতিমুলক নাম: HC type: Roofing Sheet Roll Forming Machine
rollers: 15 roller material: No.45 steel
warranty: 12 month payment term: T/T
লক্ষণীয় করা:

cold roll forming machine

,

roof panel roll forming machine

Galvanized Metal Roofing Sheet Roll Forming Machine Automatic Standing Seam



1.Smmary:



Uncoiler Manual Type
Weight of Coil 5-8T
Suitable Coil Thickness 0.4-1.2mm(Aluminum), 0.3-0.6mm(GGPI)
Suitable Coil Width 300-1220mm
Roll Stations 18 stations
Forming Speed 14m/min
Dia. of Shafts 76mm
Main Power 5.5KW
Hydraulic Power 3KW
Material of Shaft 45# Steel



2. Specification:



1. Uncoiler

  • Manual Type
  • Weight of Coil: 5-8T
  • Inner Dia.: 508-610mm
  • Outer Dia.: 1200-1500mm
  • Material Width: 300-1220mm

2. Hydraulic Cutting

  • Raw Material: Galvanized Steel Coils
  • Suitable Coil Thickness:0.4-1.2mm(Aluminum), 0.3-0.6mm(GGPI)
  • Suitable Coil Width: 300-1220mm
  • Material of Cutting Blade: Cr12MoV
  • Hardness of Shearing Blade: HRC58–60
  • Hydraulic Power: 3KW
  • PLC Control Box: 700mmx1000mmx300mm
  • Touch Screen,Frequency Converter and Encoder are all Panasonic brand from Japan

3. Roll Forming Machine

  • Roll Stations: 18 stations
  • Forming Speed: 14m/min
  • Material of Roller: High-grade 45# steel coated with hard chrome 0.05mm thickness
  • Dia. of Shafts: 76mm
  • Material of Shaft: 45# Steel
  • Material of Roller:45#steel coated with hard chrome 0.05mm
  • Material of Siding Plate:A3 steel -welded structure
  • Transmission: 1.5' Chains
  • Adjustable Siding Plate: 18mm thickness, with 2 separate siding plates adjustable by electrical control after precision processing. The siding plates can be adjusted according to customers’ requirements on the width of the profiles.
  • Material of Main body construction: 45# “H” Profile Steel
  • Transmission Type: 1.0' 16A Chains
  • Material of Chains: 45#steel with heat treatment HRC45-50°
  • Tolerance of Length: ±2mm
  • Main Power: 5.5KW

 Galvanized Metal Roofing Sheet Roll Forming Machine Automatic Standing Seam 0Galvanized Metal Roofing Sheet Roll Forming Machine Automatic Standing Seam 1Galvanized Metal Roofing Sheet Roll Forming Machine Automatic Standing Seam 2
