পণ্যের বিবরণ:
|
| color: | blue | type: | automatic |
|---|---|---|---|
| control system: | PLC control | cutting method: | hydraulic cut |
| working speed: | 8-10m/min | per month: | 30 sets |
| লক্ষণীয় করা: | metal roll forming machine,corrugated roll forming machine |
||

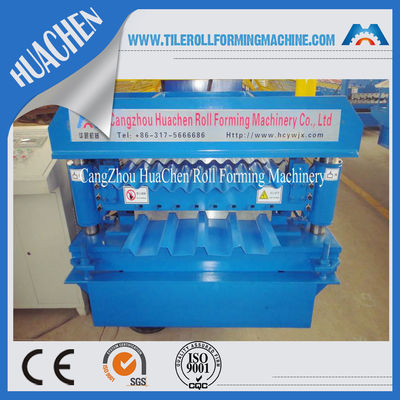

Roofing Glazed Tile Roll Forming Machine , 2 Layer Roll Form Machine Plc Control
| No. | Main Parameter of Double Layer Glazed Tile Forming Machine | |
| 1 | Suitable to process | Color steel plate |
| 2 | Width of the plate | 1250mm |
| 3 | Rollers |
Up layer:10 rows Down layer:15 rows |
| 4 | Dimensions | 9500*1550*1910mm |
| 5 | Power | 4+4kw |
| 6 | Thickness of the plate | 0.3-0.6mm |
| 7 | Productivity |
Up layer:4m/min Down layer:15-20m/min |
| 8 | Material of the cutting blade | Cr12 |
| 9 | Diameter of the roller | Φ70mm |
| 10 | Weight | About 6.9T |
| 11 | Voltage | 380V 50Hz 3phases |
| 15 | Control system | PLC control |
Industrial Process And Component Specification
| No | Technical Specification | |
| 1 | Auto Uncoiler | Usage:It is used to support the steel coil and uncoil it in a turnable way. The steel coil is uncoiled by hand. Loading capacity:5T,Inner diameter: 500-508mm |
| 2 |
Hydraulic System Computer Control Cabinet |
Power:4kw,Hydraulic oil: 40# hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job. The target piece`s length is adjustable and digit of it can be adjusted Computed mode has two modes: automatic and manual one. The system is easy to operate and use PLC:EURA |
| 3 | Press Form |
Press Form Material of blades: Cr12,quenching treatment |
| 4 | Shearing Mechanism |
It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products. Material of blades: Cr12,Quenching treatment |
| 5 | Auto Stacker |
Start reducer quickly after finish cutting products, deliver products to hold arms by deliver rollers Then pneumatic control stack on the store table which is movable Pneumatic pump (power sources) is self supply. |
1. Warranty :One year,and we will provide technical support for whole life of the equipment.
2. Delivery time: Within 30 days after deposit receipt your payment
3. Guarantee period: 18months free service/ pay service all the machine life
4. Installation and training
If buyers visit our factory and check the machine, we will teach you how to install and use the machine
and also train your workers/technician face to face.
Without visiting,we will send you user manual and video to teach you to install and operate.
If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things.
