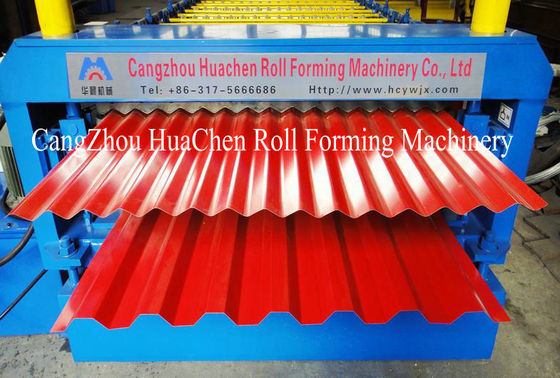

IBR / Corrugated Sheet Metal Roll Forming Machines Thickness 0.3mm-0.8mm
1. Technical Parameter
| Number | Items | UnitType | RF-DL |
| 1 | Steel Thickness | mm | 0.3-0.8 |
| 2 | Forming Speed | m/min | 8-12 |
| 3 | Roller stands | stand | 18 stands bottom layer; 18stands top layer |
| 4 | Roller Material | mm | 45# steel, coated with chrome |
| 5 | Shaft material and diameter | mm | Ф75 45# steel, coated with chrome |
| 6 | Main Motor Power | Kw | 7.5 |
| 7 | Hydraulic cutting Power | Kw | 3 |
| 8 | Hydraulic pressure | Mpa | 12 |
| 9 | Power Supply | 380V, 50HZ,3 phase | |
| 10 | Tolerance | mm | 1.5 |
| 11 | Material of cutting | Cr12 HRC60-62 | |
| 12 | Control system | PLC with touch screen | |
| 13 | Machine net weight | T | 12 |
2. Machine List
| 5 ton passive de-coiler | 1 set |
| Guiding Platform | 1 set |
| Main roll forming machine | 1 set |
| Cutting machine | 1 set |
| PLC Control box | 1 unit |
| Hydraulic station | 1 unit |
| Passive Out table | 2 units |
| Safety cover | 1 unit |
3. Reference pictures
4. Main Features
The machine can be used to produce 2 different profiles of corrugated steel sheet, e.g. 2 wall &roof sheets,
or 1 wall & roof sheet and. Customer can choose the type.
5. Company Introduction
Cangzhou Huachen Roll Forming Machinery manufacturing Co., Ltd. is a comprehensive enterprise integrating production, sales and services. We are mainly engaged in providing machineries and equipment. Owing to a professional teamwork, we are experienced in manufacturing, import and export, customers' design, installation and test, technical solution and after-sale services. We have shipped out our machines to more than 50 countries, and keep good business relationships with a large amount of worthy customers, contributing to our great business records and reputation.
