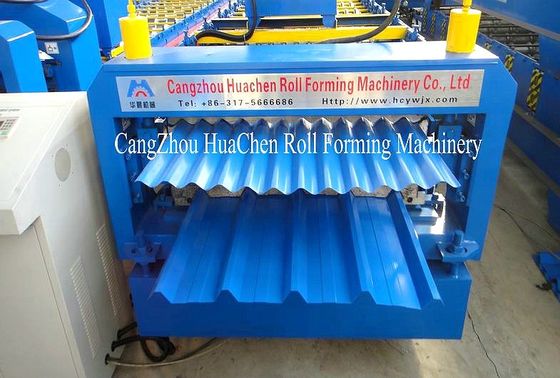

5.5KW Hydraulic corrugated sheet roll forming machine , Glazed Tiles Roll Forming Machinery

5.5KW Hydraulic corrugated sheet roll forming machine , Glazed Tiles Roll Forming Machinery
5.5KW Hydraulic corrugated sheet roll forming machine , Glazed Tiles Roll Forming Machinery
5.5KW Hydraulic corrugated sheet roll forming machine , Glazed Tiles Roll Forming Machinery 5.5KW Hydraulic corrugated sheet roll forming machine , Glazed Tiles Roll Forming Machinery

বড় ইমেজ :  5.5KW Hydraulic corrugated sheet roll forming machine , Glazed Tiles Roll Forming Machinery

পণ্যের বিবরণ:
উৎপত্তি স্থল: Botou Hebei China
পরিচিতিমুলক নাম: HC
সাক্ষ্যদান: ISO/CE
মডেল নম্বার: HC17-35
প্রদান:
ন্যূনতম চাহিদার পরিমাণ: 1set
মূল্য: 15000-39000USD
প্যাকেজিং বিবরণ: Main machine is nude,the computer control box is packed by carton box
ডেলিভারি সময়: 30days
পরিশোধের শর্ত: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
যোগানের ক্ষমতা: 20 sets/month

5.5KW Hydraulic corrugated sheet roll forming machine , Glazed Tiles Roll Forming Machinery

বিবরণ
Main frame: 350mm H-Beam type: automatic
control system: PLC control cutting method: hydraulic cut
working speed: 8-10m/min per month: 30 sets
লক্ষণীয় করা:

metal roll forming machine

,

sheet metal roll forming machines

Detailed Product Description


5.5KW Hydraulic corrugated sheet roll forming machine , Glazed Tiles Roll Forming Machinery



Quick details:



1. Warranty: 12 months, After-sales Service Provided: Engineers available to service machinery overseas

2. The color of machine: depend on your required

3. Feeding Material: color steel coils, Payment terms: T/T L/C



Description



This kind of machine has the best quality and the best price. It has accurate measurement and easy operating. We can design and manufacture the special type machine according to the customers’ requirement and we could provide technical guiding, production, installation, debugging and maintenance service to all customers.



Characteristic of Double Layer Roll Forming Machine Double Layer



1.This Joint Hidden Double Layer Roll Forming Machine can roll form metal roof panels. After roll formed by this Double Layer forming machine, the surface of metal roofing is very smooth and beautiful without any scratch on the surface of roofing.

2.The Double Layer Roll Forming Machine is with fully automatic control system with PLC.

3.Easy operation: Key in the length and quantity on the control panel.

4.We also can do a custom roll forming machine, we can design machine according to your specifications and profile drawings.

5.5KW Hydraulic corrugated sheet roll forming machine , Glazed Tiles Roll Forming Machinery 0

5.5KW Hydraulic corrugated sheet roll forming machine , Glazed Tiles Roll Forming Machinery 1

5.5KW Hydraulic corrugated sheet roll forming machine , Glazed Tiles Roll Forming Machinery 25.5KW Hydraulic corrugated sheet roll forming machine , Glazed Tiles Roll Forming Machinery 3

Specifications



Item Double Layer Roll Forming Machine
Cutting System Cutting type Hydraulic cutting
Cutting Die Material Cr12Mov steel, HRC58-62
Cutting power 3KW
CuttingTolerance 10m+/-1.5mm
Encoder OMRON Brand
Electrical Control Box PLC PANASONIC Brand
Inverter YASKAWA Brand
Touch screen PANASONICE
Operation type Touch screen & Button
Hydraulic Station Hydraulic station Famous Chinese brand
Support Tables Table type Simple nonpower type
Function To support the finished panels



Main Components



Decoiler / Uncoiler 1 Unit
Feeding Guide 1 Unit
Double Layer Roll Forming Machine 1 Unit
Hydraulic Cutting Device 1 Unit
Hydraulic Station 1 Unit
PLC Computer Control Board 1 Unit
Runout Tables 2 Units



Working Flow



Decoiler ---> Fedding Guide ---> Roll Forming ---> Cut-to-length ---> Run out table



Reference Pictures

Application



Construction, Store Fixture, Metal roof wall cladding, roof wall panel, Metal Roof sheet, trapezoidal roof metal, trapezoidal roofing, trapezoidal panel, corrugated roofing, corrugated panel, metal roof; steel roof.



Advantages



1. We can make and design all kinds of roll forming machine according to customer’s requests.

2. This is a very perfect and durable equipment. We have more than 13 years experiences.

3.This kind of machine has the best quality and the best price. It has accurate measurement and easy operating.
