Automatic Steel Metal Glazed Step Tile Making Machine 0.3-0.6mm thickness

ক্রেতার পর্যালোচনা
মেশিন ব্যবহার সহজ। বস খুব সুন্দর।

—— ইউরোপ থেকে Mr. Angolon

এটি একটি ভাল প্রস্তুতকারক, একটি ভাল ইংরেজি যোগাযোগকারী, এবং আমি আপনার মেশিন পছন্দ করি। এটা ভাল মানের, এবং সুন্দর!

—— আফ্রিকা থেকে Mr.Mark

চমৎকার সরবরাহকারী! আমি আপনার দ্রুত ডেলিভারি এবং দ্রুত উত্পাদন চক্র পছন্দ, আপনার সাথে যোগাযোগ রাখতে হবে।

—— জ্যাক আমেরিকা থেকে

তোমার দর্শন লগ করা অনলাইন চ্যাট এখন

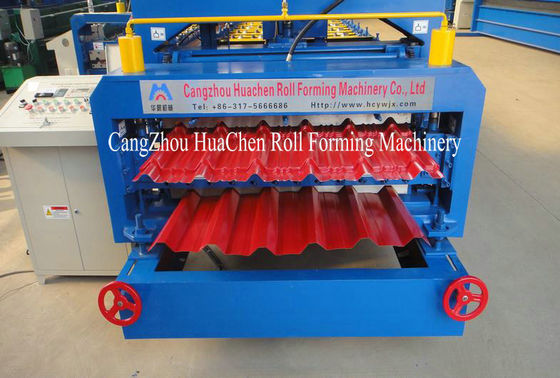

Automatic Steel Metal Glazed Step Tile Making Machine 0.3-0.6mm thickness

Automatic Steel Metal Glazed Step Tile Making Machine 0.3-0.6mm thickness
Automatic Steel Metal Glazed Step Tile Making Machine 0.3-0.6mm thickness Automatic Steel Metal Glazed Step Tile Making Machine 0.3-0.6mm thickness Automatic Steel Metal Glazed Step Tile Making Machine 0.3-0.6mm thickness Automatic Steel Metal Glazed Step Tile Making Machine 0.3-0.6mm thickness Automatic Steel Metal Glazed Step Tile Making Machine 0.3-0.6mm thickness

বড় ইমেজ :  Automatic Steel Metal Glazed Step Tile Making Machine 0.3-0.6mm thickness

পণ্যের বিবরণ:
উৎপত্তি স্থল: Botou Hebei China
পরিচিতিমুলক নাম: HC
সাক্ষ্যদান: ISO
মডেল নম্বার: HC27-32
প্রদান:
ন্যূনতম চাহিদার পরিমাণ: 1set
মূল্য: 15000-29000USD
প্যাকেজিং বিবরণ: Main machine is nude,the computer control box is packed by carton box
ডেলিভারি সময়: 30days
পরিশোধের শর্ত: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment,
যোগানের ক্ষমতা: 20 sets/month

Automatic Steel Metal Glazed Step Tile Making Machine 0.3-0.6mm thickness

বিবরণ
Usage: roof thickness: 0.3-0.6mm
weight: 6.6T warranty: 1 year
লক্ষণীয় করা:

metal roll forming machine

,

sheet metal roll forming machines

Automatic Roof Panel Roll Forming Machine Application

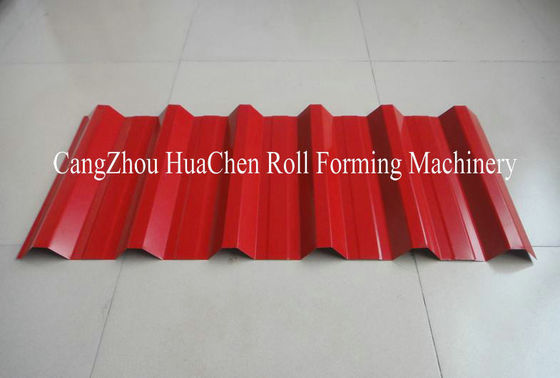

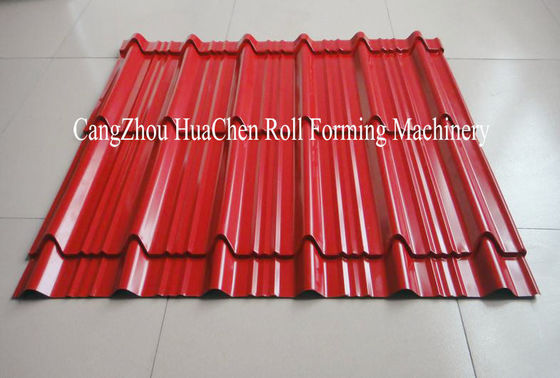

Our Automatic Roof Panel Roll Forming Machine can produce various of steel roof and wall panel, it is a new building materials, the products are widely used as the roof and wall of factory, warehouse, garage, gymnasium, exhibition center, cinema, theatre, etc. It has many advantages, such as easy installation, short building period, beauty, light weight but high strength.

SPECIFICATIONS FOR Automatic Roof Panel Roll Forming Machine

Main Roll Forming Machine
Roller station12+15 rows
Material of rollerHigh grade 45# forged steel plated with hard chrome plating
Material of cutterCr12 mould steel with quenched treatment

Material
TypePPGI GI AL
Material widthcustomized
Material thickness0.3-0.6mm

Others
Speed20m/min
PLC systemEURA or customized
Weight5.6T

Automatic Steel Metal Glazed Step Tile Making Machine 0.3-0.6mm thickness 0

Automatic Roof Panel Roll Forming Machine Features

We do high standard roll forming machine for export about 10 years.
We have mature foreign trade team,senior engineers, experienced workers to make you satisfied.
We have machines at more than 90 cuntries and regions,and keep good business relationship.
we offer one year free warranty and free service for whole life of any machine.



Certifications
Automatic Steel Metal Glazed Step Tile Making Machine 0.3-0.6mm thickness 1Automatic Steel Metal Glazed Step Tile Making Machine 0.3-0.6mm thickness 2Automatic Steel Metal Glazed Step Tile Making Machine 0.3-0.6mm thickness 3

Trapezoidal Roof Wall Panel Cold Roll Former​​ Parts

Detailed Images

Automatic Steel Metal Glazed Step Tile Making Machine 0.3-0.6mm thickness 4

5T Manual decoiler

Dimensions: 1700*1000*800
Width: 1250mm
Inner Diameter: 450-508mm
Capacity: 5T
Quality: 1 set
We also have Hydraulic type for 5T to 10 T .

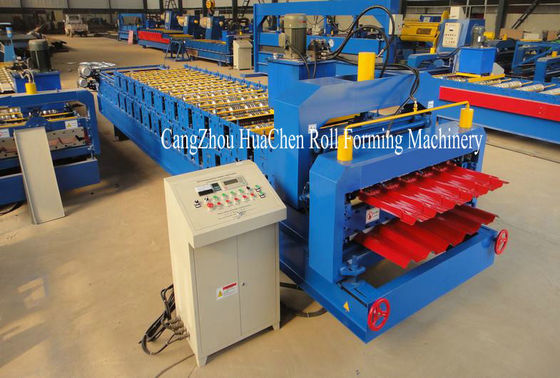

Main Roll Former

We have experieced workers to design the rollers as customized profile drawing , and adopts welded steel frame sturcture, AC frequency conversion motor reducer drive, chain transmission , to get strong machine for good finish products .

Automatic Steel Metal Glazed Step Tile Making Machine 0.3-0.6mm thickness 5

Automatic Steel Metal Glazed Step Tile Making Machine 0.3-0.6mm thickness 6

Hydraulic Pump Station

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

PLC control system

PLC Brand : EURA or Customized
Language: English and Chinese
Control panel: Button or Touch Sreen
Frequency converter : EURA or customized
HMI : Easy to operate

Automatic Steel Metal Glazed Step Tile Making Machine 0.3-0.6mm thickness 7

Automatic Steel Metal Glazed Step Tile Making Machine 0.3-0.6mm thickness 8

Hydraulic Cutting

Forming and Cutting: Cut the sheet after roll forming to required length
Material of blade: Cr12, 58-62 HRC hardness
Hydraulic power : 4KW
Length measuring : Automatic encoder length measuring
Tolerance of length : +/- 1.5mm for each piece

Out Put Table

Size: 1500*1300*700mm
Quantity: 2 sets
We also have Auto stacker for automatic production line .

Automatic Steel Metal Glazed Step Tile Making Machine 0.3-0.6mm thickness 9


Our Service



Automatic Steel Metal Glazed Step Tile Making Machine 0.3-0.6mm thickness 10Automatic Steel Metal Glazed Step Tile Making Machine 0.3-0.6mm thickness 11

Pre-Sales Service

* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to operate the machine.
* Engineers available to service machinery overseas.


Packing & Delivery

Automatic Steel Metal Glazed Step Tile Making Machine 0.3-0.6mm thickness 12Size: 11500 (L) * 1500 (W) * 1510 (H)
Weight: 28T
1.Main Roll Forming Machine and un-coiler is nude packing (If you need, we can also packed it with water-proof plastic)
2. PLC control system and motor pump are packed with water proof paper,spare parts in carton box.
3.One set of machine needs a 40' container to shipping.


Automatic Steel Metal Glazed Step Tile Making Machine 0.3-0.6mm thickness 13 Automatic Steel Metal Glazed Step Tile Making Machine 0.3-0.6mm thickness 14 Automatic Steel Metal Glazed Step Tile Making Machine 0.3-0.6mm thickness 15
