পণ্যের বিবরণ:
|
| raw material: | PPGI, color steel | type: | automatic |
|---|---|---|---|
| control system: | PLC control | per month: | 20 sets |
| cutting method: | hydraulic cut | raw material width: | 1000-1250mm |
| লক্ষণীয় করা: | sheet metal cutting machine,automatic pipe cutting machine |
||

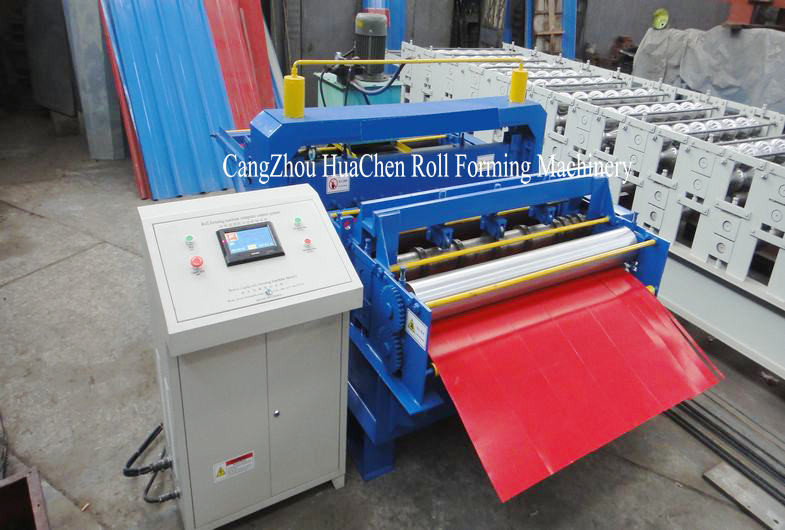

Automatic Metal Plate Cutting and Slitting Machine
Quick Detail:
1. Suitable to process: Color steel plate
2. Width of the plate: 1000-1250mm
3. Rollers: 3 rows
4. Dimensions: 3.5*1.55*1.51m
5. Power: 4+4kw
6. Rolling material: 45# steel(plated chrome on surface)
7. Thickness of the plate:0.3-0.7mm
8. Voltage: 380V 50Hz 3phases
9. Hydraulic: 40#
10. Processing precision: Within 1.00mm
11. Control system: PLC control
Description:
Hydraulic Control Cut to Length Metal Plate Cutting Machine Main parameter
|
No. |
Main parameter of Hydraulic Control Cut to Length Metal Plate Cutting Machine |
|
|
1 |
Suitable to process |
Color steel plate |
|
2 |
Width of the plate |
1000-1250mm |
|
3 |
Rollers |
3 rows |
|
4 |
Dimensions |
3.5*1.55*1.51m |
|
5 |
Power |
4+4kw |
|
6 |
Thickness of the plate |
0.3-0.7mm |
|
7 |
Productivity |
25m/min |
|
8 |
Voltage |
380V 50Hz 3phases |
|
9 |
Hydraulic |
40# |
|
10 |
Processing precision |
Within 1.00mm |
|
11 |
Control system |
PLC control |
Equipment components: Man-made uncoiler-leveling-roll forming machine-computer control system-hydraulic control system-cutting
Application
use for cut the sheet to strips, also use for other accessories.
Competitive Advantage
1. Pretty appearance
2. Various special model
3. mature foreign trade team
4. professional designing team
5. Lifetime maintenance
