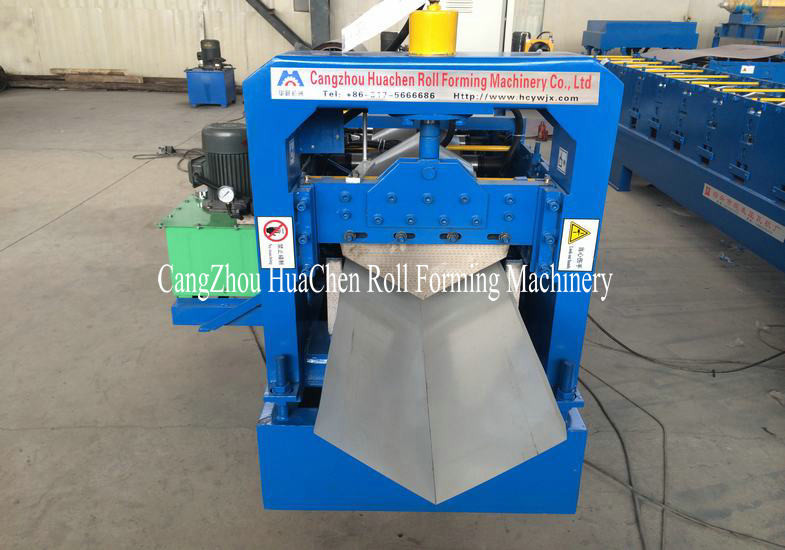

1 Years Warranty Ridge Cap Tile Forming Machine Touch Screen PLC Controller

1 Years Warranty Ridge Cap Tile Forming Machine Touch Screen PLC Controller
1 Years Warranty Ridge Cap Tile Forming Machine Touch Screen PLC Controller 1 Years Warranty Ridge Cap Tile Forming Machine Touch Screen PLC Controller

বড় ইমেজ :  1 Years Warranty Ridge Cap Tile Forming Machine Touch Screen PLC Controller

পণ্যের বিবরণ:
উৎপত্তি স্থল: Botou Hebei China
পরিচিতিমুলক নাম: HC
সাক্ষ্যদান: ISO
মডেল নম্বার: HC343
প্রদান:
ন্যূনতম চাহিদার পরিমাণ: 1set
মূল্য: 8000-19000USD
প্যাকেজিং বিবরণ: Main machine is nude,the computer control box is packed by carton box
ডেলিভারি সময়: 30days
পরিশোধের শর্ত: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
যোগানের ক্ষমতা: 20 sets/month

1 Years Warranty Ridge Cap Tile Forming Machine Touch Screen PLC Controller

বিবরণ
লক্ষণীয় করা:

roll form equipment

,

metal forming machines

1 Years Warranty Ridge Cap Tile Forming Machine Touch Screen PLC Controller

Features of Metal Roof Panel Roll Forming Machine



1. This Metal Roof Panel Roll Forming Machine adopts PLC control, AC frequency and speed adjusting technology and it realizes the continuous automatically production.

2. The roof panel is roll formed by this roof panel roll forming machine, the surface of roof panel is very smooth and beautiful without any scratch.

3. The metal roof panel roll forming machine is with fully automatic PLC control system, the length, quantity of sheets is adjustable, very easy operation.

4. The main frame of this roof panel roll forming machine is structured by welding wall plate, and the stand of this roll forming machine are welded by H shape welding steel, which is highly maintain the rigidity and stability of the roll forming machine.

5. The forming rollers of roof panel forming machine is high grade 45# steel with hard chrome 0.05mm surface. And all the forming rollers are processed by CNC milling machine to guarante high accuracy.

6. The Cutting part is the last process of this roof panel forming machine line, it accurately custs sheet to any required length. The cutting part consistes of hydruic driver, profiled cutting blades and cutting frame. The blade adopt Cr12mov steel, cutter profile is same as the sheet profiles to cut the sheet profile in a good shape and no waste.

7. We also can do a custom roll forming machine, we can design roll forming machines according to clients specifications and profile drawings, all our machines are customized.



Reference Specifications of Metal Roof Roll Forming Machine



Item Roof Panel Roll Forming Machine
Coil Material Thickness 0.3-0.8mm
Coil width Custom-made, 1000mm or 1200mm or 1250mm
Yield Strength 250-350 Mpa
Material PPGI, Color Steel, GI.
Decoiler / Uncoiler Uncoiler Type Manual or Hydraulic or Auto Type
Coil Width Max. 1250mm
I.D 508-610mm
O.D Max. 1500mm
Roof Panel Roll Forming Machine Forming Stations 11 Stations ( Depend on Profiles )
Roller material 45# steel, surface coated with 0.05mm hard chrome
Diameter of shaft 70mm
Shaft material High grade 45# steel
Drive type Chain transmission
Forming speed 0-15m/min
Main power 5.5KW
Cutting Device Cutting type Hydraulic cutting
Cutting Die Material Cr12Mov steel, HRC58-62
Cutting power 3KW
CuttingTolerance 10m+/-1.5mm
Encoder OMRON Brand
PLC Electrical Control System PLC PANASONIC Brand
Inverter YASKAWA Brand
Touch screen PANASONICE
Operation type Touch screen & Button
Hydraulic Station Hydraulic station Famous Chinese brand
Runout Tables Table type Simple nonpower type
Function To support the finished panels



Main Components of Roof Panel Roll Forming Machine



Decoiler / Uncoiler 1 Unit
Feeding Guide 1 Unit
Roof Panel Roll Forming Machine 1 Unit
Hydraulic Cutting System 1 Unit
Hydraulic Station 1 Unit
PLC Computer Control Box 1 Unit
Support Tables 2 Units

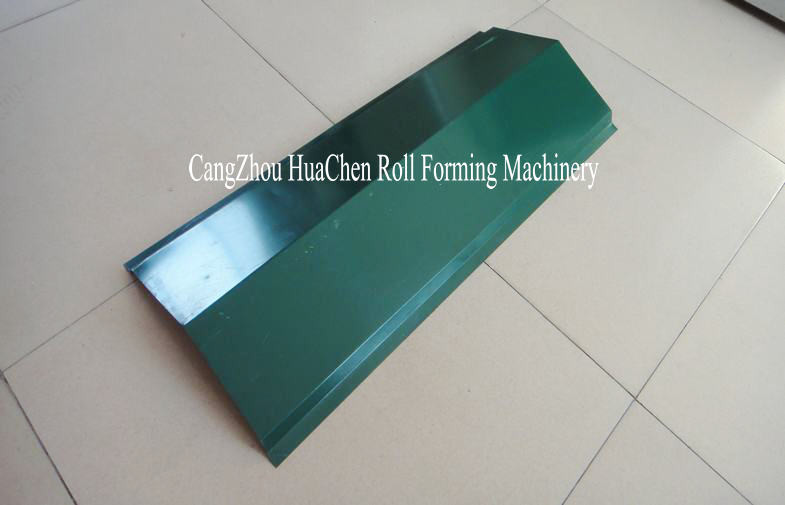

Reference Roof Panel Profiles

1 Years Warranty Ridge Cap Tile Forming Machine Touch Screen PLC Controller 01 Years Warranty Ridge Cap Tile Forming Machine Touch Screen PLC Controller 11 Years Warranty Ridge Cap Tile Forming Machine Touch Screen PLC Controller 21 Years Warranty Ridge Cap Tile Forming Machine Touch Screen PLC Controller 3
