Automatic Galvanized Steel Double Layer Roll Forming Machine with 380V 50Hz

ক্রেতার পর্যালোচনা
মেশিন ব্যবহার সহজ। বস খুব সুন্দর।

—— ইউরোপ থেকে Mr. Angolon

এটি একটি ভাল প্রস্তুতকারক, একটি ভাল ইংরেজি যোগাযোগকারী, এবং আমি আপনার মেশিন পছন্দ করি। এটা ভাল মানের, এবং সুন্দর!

—— আফ্রিকা থেকে Mr.Mark

চমৎকার সরবরাহকারী! আমি আপনার দ্রুত ডেলিভারি এবং দ্রুত উত্পাদন চক্র পছন্দ, আপনার সাথে যোগাযোগ রাখতে হবে।

—— জ্যাক আমেরিকা থেকে

তোমার দর্শন লগ করা অনলাইন চ্যাট এখন

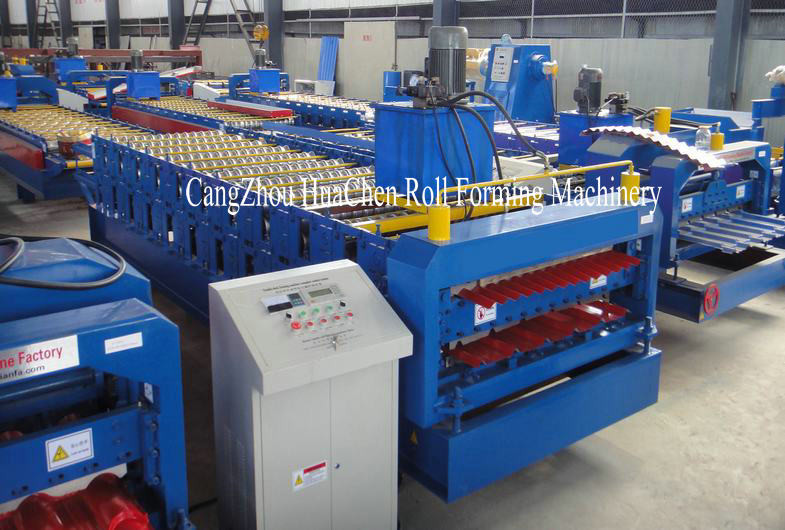

Automatic Galvanized Steel Double Layer Roll Forming Machine with 380V 50Hz

Automatic Galvanized Steel Double Layer Roll Forming Machine with 380V 50Hz
Automatic Galvanized Steel Double Layer Roll Forming Machine with 380V 50Hz
Automatic Galvanized Steel Double Layer Roll Forming Machine with 380V 50Hz Automatic Galvanized Steel Double Layer Roll Forming Machine with 380V 50Hz Automatic Galvanized Steel Double Layer Roll Forming Machine with 380V 50Hz Automatic Galvanized Steel Double Layer Roll Forming Machine with 380V 50Hz Automatic Galvanized Steel Double Layer Roll Forming Machine with 380V 50Hz Automatic Galvanized Steel Double Layer Roll Forming Machine with 380V 50Hz

বড় ইমেজ :  Automatic Galvanized Steel Double Layer Roll Forming Machine with 380V 50Hz

পণ্যের বিবরণ:
উৎপত্তি স্থল: Botou Hebei China
পরিচিতিমুলক নাম: HC
সাক্ষ্যদান: ISO
মডেল নম্বার: HC22/16
প্রদান:
ন্যূনতম চাহিদার পরিমাণ: 1set
মূল্য: 15000-39000USD
প্যাকেজিং বিবরণ: Main machine is nude,the computer control box is packed by carton box
ডেলিভারি সময়: 30days
পরিশোধের শর্ত: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
যোগানের ক্ষমতা: 20 sets/month

Automatic Galvanized Steel Double Layer Roll Forming Machine with 380V 50Hz

বিবরণ
লক্ষণীয় করা:

sheet metal roll forming machines

,

corrugated roll forming machine

Automatic Galvanized Steel Double Layer Roll Forming Machine with 380V 50Hz





1.Working Flow:



20m/min High Speed Double Layer Roll Forming Machine For Wave And IBR Roof

double sheet forming machine.jpg

Manual Uncoiler- Roll Forming Machine - Computer Control System - Hydraulic Control System - Cutting





Quick Detail:



20m/min High Speed Double Layer Roll Forming Machine For Wave And IBR Roof



1. Suitable to process: Color steel plate

2. Width of the plate: 1220mm

3. Rollers: 12/12 rows

4. Dimensions: 7.2*1.55*1.91m

5. Power: 4+4kw

6. Rolling material: high grade 45# steel(plated chrome on surface)

7. Thickness of the plate:0.3-0.6mm

8. Voltage: 380V 50Hz 3phases

9. Material of the cutting plate: Cr12

10. Hydraulic: 40#

11. Processing precision: Within 1.00mm

12. Control system: PLC control





Description:



20m/min High Speed Double Layer Roll Forming Machine For Wave And IBR Roof



Automatic Galvanized Steel Double Layer Roll Forming Machine with 380V 50Hz 1



Double layer roll forming machine Main parameter

No.

 Main parameter of Double layer roll forming machine



1

Suitable to process

Color steel plate

2

Width of the plate

1220mm

3

Rollers

upper level :12 rows

Down level :12 rows

4

Dimensions

7200*1550*1910mm

5

Power

4+4kw

6

Rolling material

high grade 45# steel(plated chrome on surface)

6

Thickness of the plate

0.3-0.6mm

7

Productivity

20m/min

8

Diameter of the roller

Φ70mm

9

Voltage

380V 50Hz 3phases

10

Material of the cutting plate

Cr12

11

Hydraulic

40#

12

Processing precision

Within 1.00mm

13

Control system

PLC control

Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system- cutting





Application



This kind of machine make two types of tile together perfectly, it has reasonable structure, beautiful appearance, with advantage of saving space, easy operate and especially welcomed by the customer  with limit area or site

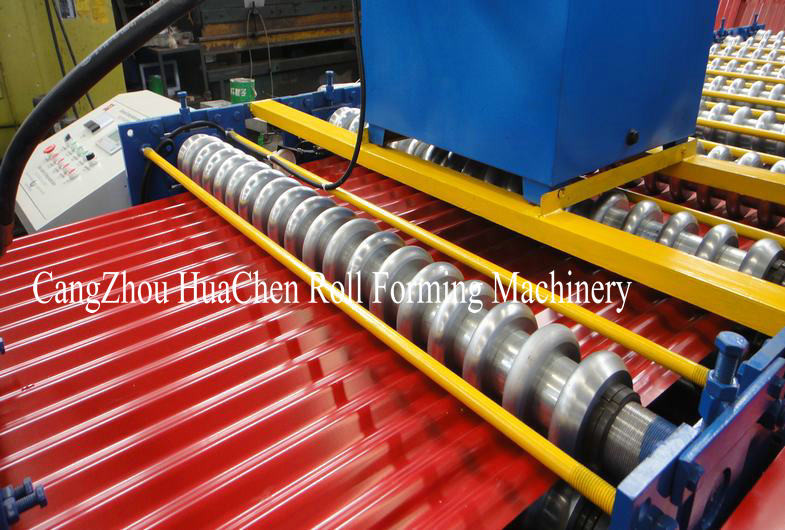

Automatic Galvanized Steel Double Layer Roll Forming Machine with 380V 50Hz 2

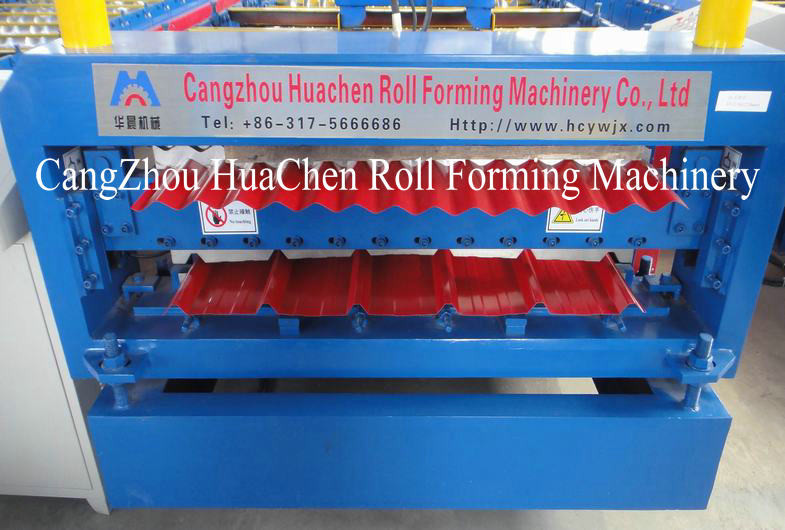

Automatic Galvanized Steel Double Layer Roll Forming Machine with 380V 50Hz 3





Competitive Advantage



1. sample customized

2. short production cycle

3. quality guarantee

4. high-effect, low consume

5. provide lifelong technical support
