পণ্যের বিবরণ:
|
| Material: | DX51 | Thickness: | 0.4-0.6mm |
|---|---|---|---|
| Capacity: | 10m/min | Type: | Square |
| warranty: | 1 year | life time: | 10 years |
| লক্ষণীয় করা: | Down pipe roll forming machine,pipe roll forming machine |
||

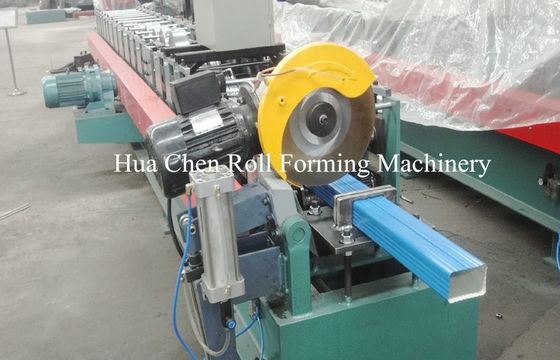

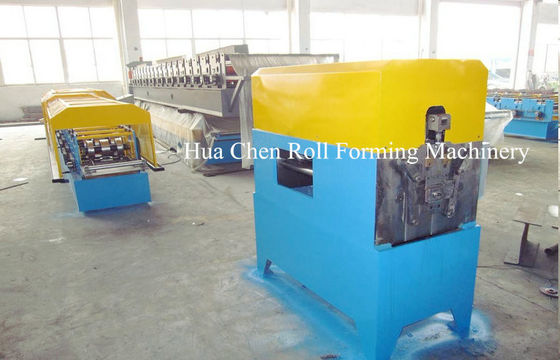

Metal Gutter Shaping Machine Downspouts cold roll forming Machine For Sale from china manufacturer
Techical description
| Material thickness | 0.4-0.8mm |
| Roll speed | 8-12m/min |
| Roll steps | 14 |
| Main motor power | 4 KW |
| Shaft diameter | 80mm |
| Material of roller | 45# steel polished and coated with chrome HRC55-60° |
| Material of bearing | high grade No.45 steel after treatment |
| Material thickness | 0.3-0.8mm |
| Mode of cutting | Hydraulic cutting or flying saw |
| Material of scissors | Cr12 steel after treatment |
| Hydraulic station power | 3 Kw |
| Control system | PLC Frequency Control System with touch screen |
| Computer cabinet size | 700mm*1000mm*300m |
Quick Detail:
1. Suitable to process: Color steel plate
2. Width of the plate: 330mm
3. Rollers: 15 rows
4. Dimensions: 7.4*1.15*1.51m
5. Power: 5.5+4kw
6. Rolling material: high grade 45# steel(plated chrome on surface)
7. Thickness of the plate:0.3-0.6 mm
8. Voltage: 380V 50Hz 3phases
9. Material of the cutting plate: Cr12
10. Hydraulic: 40#
11. Processing precision: Within 1.00mm
12. Control system: PLC control
Description:
Downspout Roll Forming Machine Main parameter
|
No. |
Main parameter of Downspout Roll Forming Machine |
|
|
1 |
Suitable to process |
Color steel plate |
|
2 |
Width of the plate |
330mm |
|
3 |
Rollers |
15rows |
|
4 |
Dimensions |
7400*1150*1510mm |
|
5 |
Power |
5.5+4kw |
|
6 |
Rolling material |
high grade 45# steel(plated chrome on surface) |
|
6 |
Thickness of the plate |
0.3-0.6mm |
|
7 |
Productivity |
8-10m/min |
|
8 |
Diameter of the roller |
Φ66mm |
|
9 |
Voltage |
380V 50Hz 3phases |
|
10 |
Material of the cutting plate |
Cr12 |
|
11 |
Hydraulic |
40# |
|
12 |
Processing precision |
Within 1.00mm |
|
13 |
Control system |
PLC control |
Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system-cutting
Machine components:
| Decoiler | 1set |
| Guiding Equipment | 1set |
| Roll Forming Equipment | 1set |
| Post Cut Equipment | 1set |

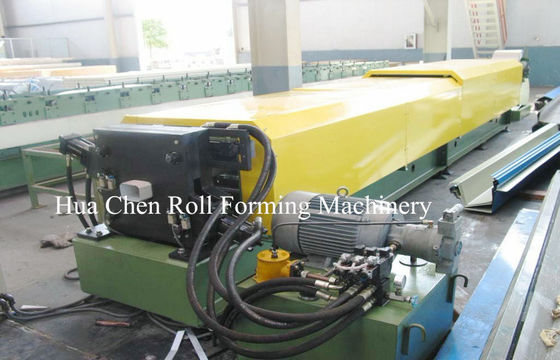

| Hydraulic Station | 1set |
| PLC Control System | 1set |
| Supporter Table |
1set |
Application

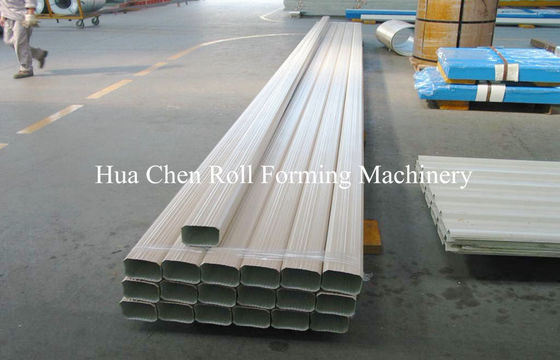

The roll formed product is mor durable than the tranditional ppc pipe, and not easy to aging.
It will make the project more integrate, and help enhancing the image of all project.
Drainpipe bending machine used for bend the roll formed pipe, to connect the drainpipe and the elbowed pipe.
Competitive Advantage
1. CE certification
2 .ISO certification
3. working life 20 years
4. high quality steel
5. High efficiency
