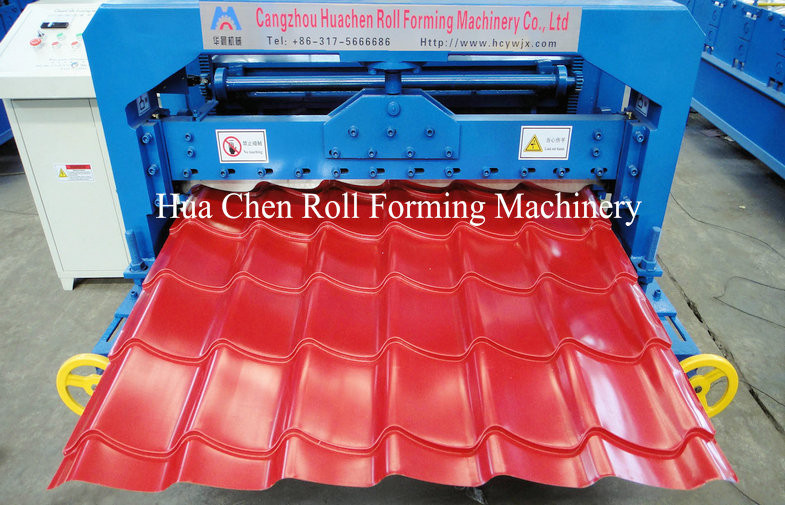

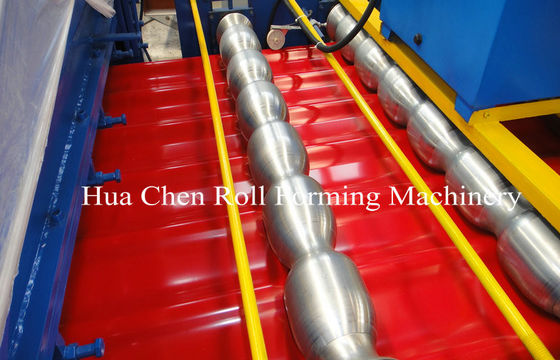

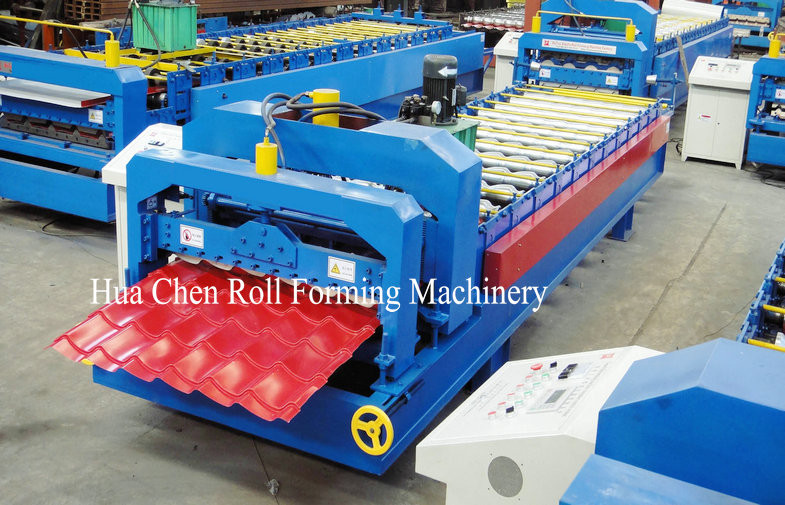

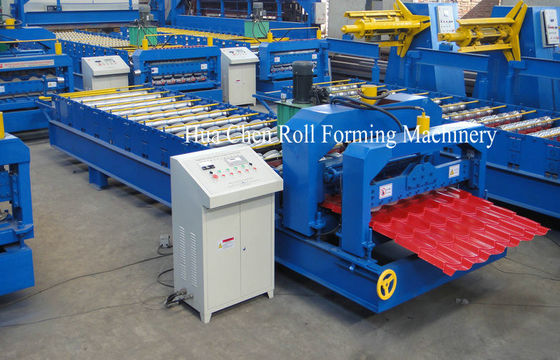

HC Galvanized/Aluminum Roof Sheet Glazed Tile Roll Forming Machine

HC Galvanized/Aluminum Roof Sheet Glazed Tile Roll Forming Machine
HC Galvanized/Aluminum Roof Sheet Glazed Tile Roll Forming Machine HC Galvanized/Aluminum Roof Sheet Glazed Tile Roll Forming Machine HC Galvanized/Aluminum Roof Sheet Glazed Tile Roll Forming Machine HC Galvanized/Aluminum Roof Sheet Glazed Tile Roll Forming Machine HC Galvanized/Aluminum Roof Sheet Glazed Tile Roll Forming Machine

বড় ইমেজ :  HC Galvanized/Aluminum Roof Sheet Glazed Tile Roll Forming Machine

পণ্যের বিবরণ:
উৎপত্তি স্থল: Botou Hebei China
পরিচিতিমুলক নাম: HC
সাক্ষ্যদান: ISO
মডেল নম্বার: HC24
প্রদান:
ন্যূনতম চাহিদার পরিমাণ: 1set
প্যাকেজিং বিবরণ: Main machine is nude,the computer control box is packed by carton box
ডেলিভারি সময়: 30days
পরিশোধের শর্ত: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
যোগানের ক্ষমতা: 20 sets/month

HC Galvanized/Aluminum Roof Sheet Glazed Tile Roll Forming Machine

বিবরণ
Thickness: 0.3-0.6mm Speed: 4m/min
type: cold roll forming Design: custom
warranty: 1 year life time: 10 years
লক্ষণীয় করা:

roll forming equipment

,

cold roll forming machine

HC Galvanized/Aluminum Roof Sheet Glazed Tile Roll Forming Machine



Quick Detail:



1. Suitable to process: Color steel plate

2. Width of the plate: 1250mm

3. Rollers: 15 rows

4. Dimensions: 8.2*1.55*1.51m

5. Power: 4+4kw

6. Rolling material: 45# steel(plated chrome on surface)

7. Thickness of the plate:0.3-0.6mm

8. Voltage: 380V 50Hz 3phases

9. Material of the cutting plate: Cr12

10. Hydraulic: 40#

11. Processing precision: Within 1.00mm

12. Control system: PLC control



Specifications:
No. Item Description
1 Model No. HKY
2 Suitable material Color steel sheet ,galvanized steel sheet, Aluminum sheet
3 Working speed 4-6m/min
4 Main motor power 5.5kw with cycloidal reducer
5 Hydraulic station power 4kw
6 Electrical control system PLC control system with famous brand
7 Thickness of material 0.25mm~0.8mm
8 Shaft diameter 95mm
9 Roller station 13 stations
10 Material expand axis 1000&1200mm&1250mm
11 Dimension 6500x1500x1500mm
12 Driving mode Chain
13 Electric tension 380V 3phase 50HZ or as the customer's requirements
14 Material of roller High grade 45# forged steel plated with hard chrome plating
15 Material of cutting Cr12 mould steel with quenched treatment
16 Working time Can be 24 hours
17 Workers 1-2 only



HC Galvanized/Aluminum Roof Sheet Glazed Tile Roll Forming Machine 0HC Galvanized/Aluminum Roof Sheet Glazed Tile Roll Forming Machine 1HC Galvanized/Aluminum Roof Sheet Glazed Tile Roll Forming Machine 2HC Galvanized/Aluminum Roof Sheet Glazed Tile Roll Forming Machine 3

Description:



Roof Tile Roll Forming Machine Main parameter

No.

   Main parameter of Glazed Tile Roll Forming Machine

1

Suitable to process

Color steel plate

2

Width of the plate

1250mm

3

Rollers

15 rows

4

Dimensions

8200*1550*1510m

5

Power

4+4kw

6

Rolling material

45# steel(plated chrome on surface)

6

Thickness of the plate

0.3-0.6mm

7

Productivity

4m/min

8

Diameter of the roller

Φ70mm

9

Voltage

380V 50Hz 3phases

10

Material of the cutting plate

Cr12

11

Hydraulic

40#

12

Processing precision

Within 1.00mm

13

Control system

PLC control





Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system-press form-cutting





Application

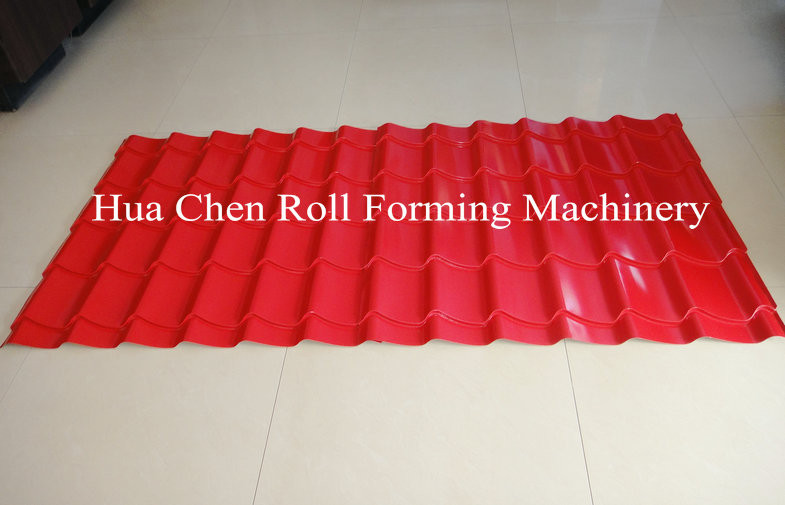

This type of glazed tile has advantage inclouding beautiful, classical appearance and grace taste. It can be widely used in village, hotel, exhibition, vocation vallage, family construction and outdoor decorate.





What is Service?



We provide the technical support for whole life.

Meanwhile, if any parts go broken and not artificial damage, we will send you new ones for free.

When need the technician to go abroad, we will arrange the technician.

But the buyer should take all the cost, including Visa, Roundtrip ticket,

suitable accommodation and pay the service fee to the technician with $100/days



How is payment?



T/T( 30% by T/T in advance, the rest 70% to be paid by T/T after you inspect the machine

in seller's factory before delivery )
