Full Automatic Steel Hydraulic Highway Guardrail Forming Machine for EURO

বেসিক ইনফরমেশন
Place of Origin: Botou Hebei China
পরিচিতিমুলক নাম: HC
সাক্ষ্যদান: ISO
Model Number: HC330
Minimum Order Quantity: 1set
মূল্য: 29000-49000USD
Packaging Details: Main machine is nude,the computer control box is packed by carton box
Delivery Time: 30days
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability: 20 sets/month
বিস্তারিত তথ্য
Usage: highway guardrail material: GI
Thickness: 3-4mm power: 380V
free warranty: 1 year technical support: whole life
লক্ষণীয় করা:

sheet metal Forming Machine

,

sheet metal roll forming machines


পণ্যের বর্ণনা

Highway Guardrail R Forming Machine



Quick Detail:

1. Suitable to process: Color steel plate

2. Width of the plate: 550mm

3. Rollers: 24 rows

4. Dimensions: 11.6*1.35*1.51m

5. Power: 22+7.5kw

6. Rolling material: shaft bearing steel(quenching)

7. Thickness of the plate:2.5-3mm

8. Voltage: 380V 50Hz 3phases

9. Material of the cutting plate: Cr12

10. Hydraulic: 40#

11. Processing precision: Within 1.00mm

12. Control system: PLC control

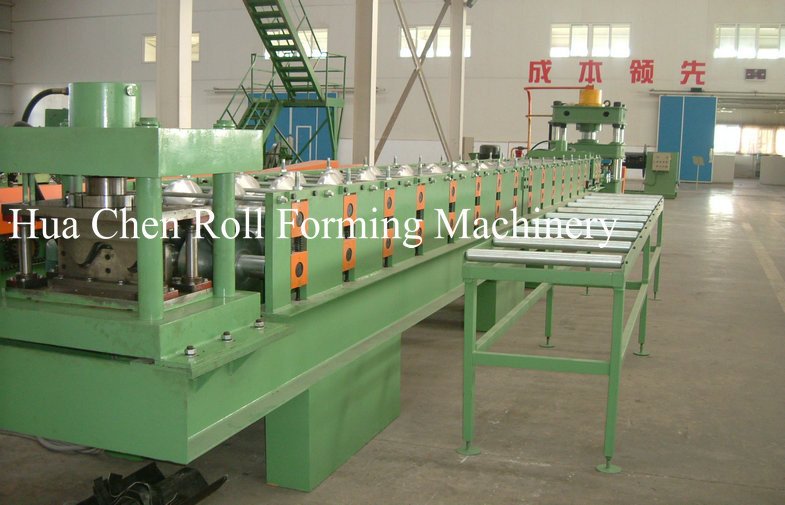

Model number highway guardrail used roll forming machine
Rolled material 2-4mm thickness, General Steel such as Q235
Effective width 350mm
Feeding width 488mm
Forming steps 16 stations
Roller GCR15, quenched treated HRC58-62℃
Diameter of shaft 100mm
Main motor power 37 kw
Pump power 15 kw
Drive type by chains Or by Gear box(worm driving)
Cutting Blade Cr12, heat treatment 60-62°C
Frequency Converter It has the advantage of slowing down before cutting, to ensure the length accuracy (±1mm, far better than industrial standard ±3mm).
component 1 set of manual decoiler,1 set of main roll forming machine,1 set of computer control cabinet,1 set of hydraulic System,1 set of cutting mechanism,1 set of counter,1 set of output table
Payment terms cash,T/T,L/C.
Delivery time 30 Working days

Full Automatic Steel Hydraulic Highway Guardrail Forming Machine for EURO 0Full Automatic Steel Hydraulic Highway Guardrail Forming Machine for EURO 1Full Automatic Steel Hydraulic Highway Guardrail Forming Machine for EURO 2

Description:



Highway Guardrail R Forming Machine  Main parameter

No.

   Main parameter of Highway Guardrail R Forming Machine

1

Suitable to process

Color steel plate

2

Width of the plate

550mm

3

Rollers

24 rows

4

Dimensions

110600*1350*1510mm

5

Power

33+7.5kw

6

Rolling material

shaft bearing steel(quenching)

6

Thickness of the plate

2.5-3mm

7

Productivity

8-10m/min

8

Diameter of the roller

Φ100mm

9

Voltage

380V 50Hz 3phases

10

Material of the cutting plate

Cr12

11

Hydraulic

40#

12

Processing precision

Within 1.00mm

13

Control system

PLC control

Equipment components: Man-made uncoiler-leveling-roll forming machine-computer control system-hydraulic control system-punching-cutting



Before ordering:

We can help to analyze the roof tile in your market. Which one is popular and which one will be popular.

Then your product is hot sale roof tile .



We can confirm all details of the roof tile roll forming machine together, including the drawing, thickness of

material, hardness of the steel coil, the input width of the steel coil, capacity of the roll forming machine.



We can help you to find the real manufacturer of steel coil manufacturer. Say bye to Trade company. So you can

order the material coil with lowest price.



During production:

We can send the pictures to show you the schedule of your roll forming machines.

We will show you my blogger account for you to learn knowledge of roll forming machine if you would like

We will ask you what color of the roll forming machine body. Produce the machine under your suggestion



After-sale service:

We supply one year guarantee for the machine. The parts of the roll forming machine are free to send you and

you will pay the cost of freight. And you can aslo solve it if you ordered more parts for your rol forming machine



We supply all life tech support of our roll forming machines, Any questions, you can contact me by whatsapp +86 18233766102
